PowMr 24V 110V Solar Inverter Hybrid 3KW MPPT 80A 100A Off Grid Pure Sine Wave Inverter 110V 120V
PowMr 24V 110V Solar Inverter Hybrid 3KW MPPT 80A 100A Off Grid Pure Sine Wave Inverter 110V 120V
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: PowMr
Certification: CE,FCC,RoHS
Hign-concerned Chemical: None
Is Smart Device: YES
Model Number: POW-LVM3K-24V
Origin: Mainland China
Output Current: 80A 100A
Output Frequency: 50/60Hz
Output Power: 1 - 200KW
Output Type: SINGLE
is_customized: Yes
Remark:
*Silm Version no CAN communication port
*PV operating voltage range: POW-LVM3.2K-24V(Slim Version) 30 ~ 108Vdc; POW-LVM3K-24V-H(Standard Version)120~450Vdc;
*More differences please check the dashsheet below.
Models |
Slim Version POW-LVM3.2K-24V |
Standard Version POW-LVM3K-24V-H |
PV Charging | ||
Maximum PV open circuit voltage |
108Vdc |
450Vdc |
PV operating voltage range |
30 ~ 108Vdc |
120~450Vdc |
MPPT voltage range |
30 ~ 90Vdc |
120~400Vdc |
Battery voltage range |
20 ~ 33Vdc |
|
Maximum input power |
1600W |
4000W |
PV charging current range (can be set) |
0-60A |
0~80A |
Charging short circuit protection |
Blown fuse |
|
Wiring protection |
Reverse connection protection |
|
|
Max. hybrid charging current
(AC charging + PV charging) (can be set)
|
0-100A |
0~80A |
AC Mode | ||
Rated input voltage |
110/120Vac |
|
Input voltage range |
(90Vac~140Vac) ±2% |
|
Frequency |
50Hz/ 60Hz (Auto detection) |
|
Efficiency |
>92% |
>95% |
AC reverse protection |
Available |
|
Maximum bypass overload current |
40A |
|
Inverter Mode | ||
Output voltage waveform |
Pure sine wave |
|
Rated output power (VA) |
3200 |
3000 |
Rated output power (W) |
3200 |
3000 |
Power factor |
1 |
|
Rated output voltage (Vac) |
120Vac |
|
Peak power |
6000VA |
|
Rated battery input voltage |
24V (Minimum starting voltage 22V) |
|
Power saving mode |
Load ≤50W |
|
AC Charging | ||
Battery type |
Lead acid or lithium battery |
|
Maximum charge current (can be set) |
0-40A |
|
Charge current error |
± 5Adc |
|
Charge voltage range |
20 ~ 33Vdc |
|
Short circuit protection |
Circuit breaker and blown fuse |
|
Circuit breaker specifications |
40A |
|
Overcharge protection |
Alarm and stop charging after 1 minute |
|
Details-POW-LVM3K-24V-H(Standard Version):

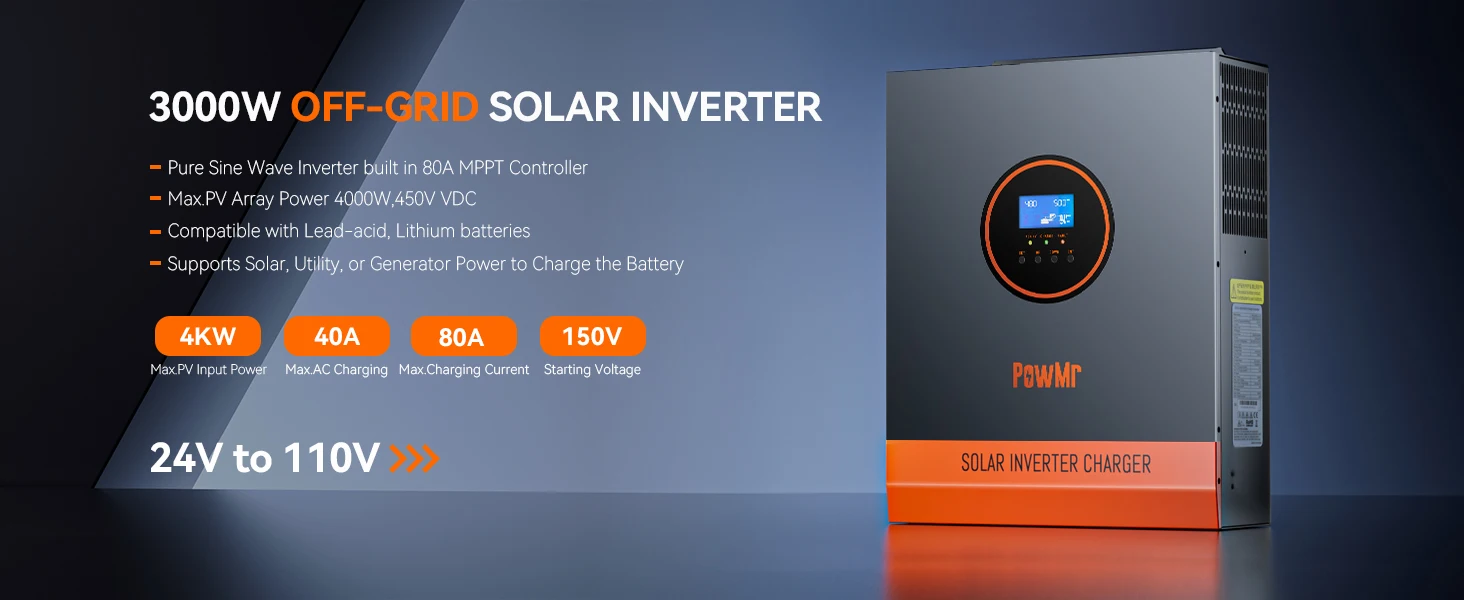

[3KW Solar Inverter]
3000W pure sine wave inverter 24VDC to 110V/120VAC, Built-in 80A MPPT charge controller. With full digital voltage and current double closed loop control and advanced SPWM technology, the charging efficiency is up to 99.9%. With high safety performance, it can protect your home circuit!

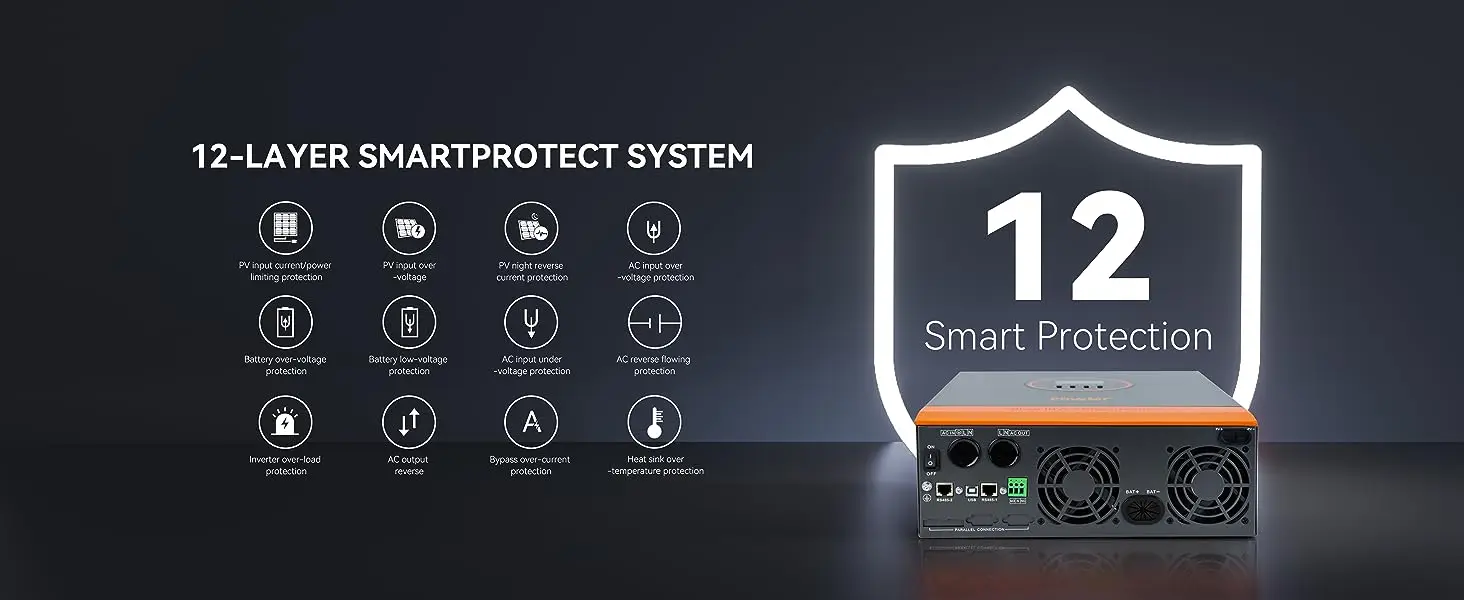

[Multiple Protection Functions]
While the inverter also has short circuit protection, overload protection, reverse protection, overvoltage and undervoltage protection, which greatly ensures your circuit and power safety.

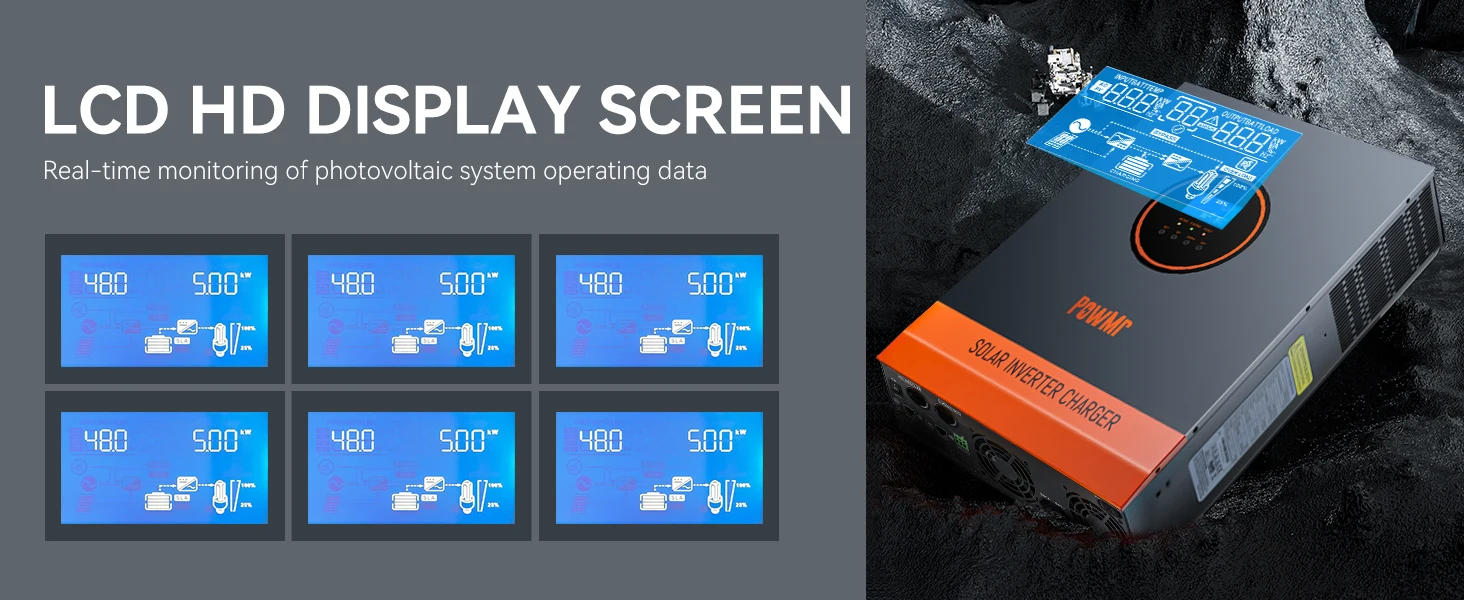

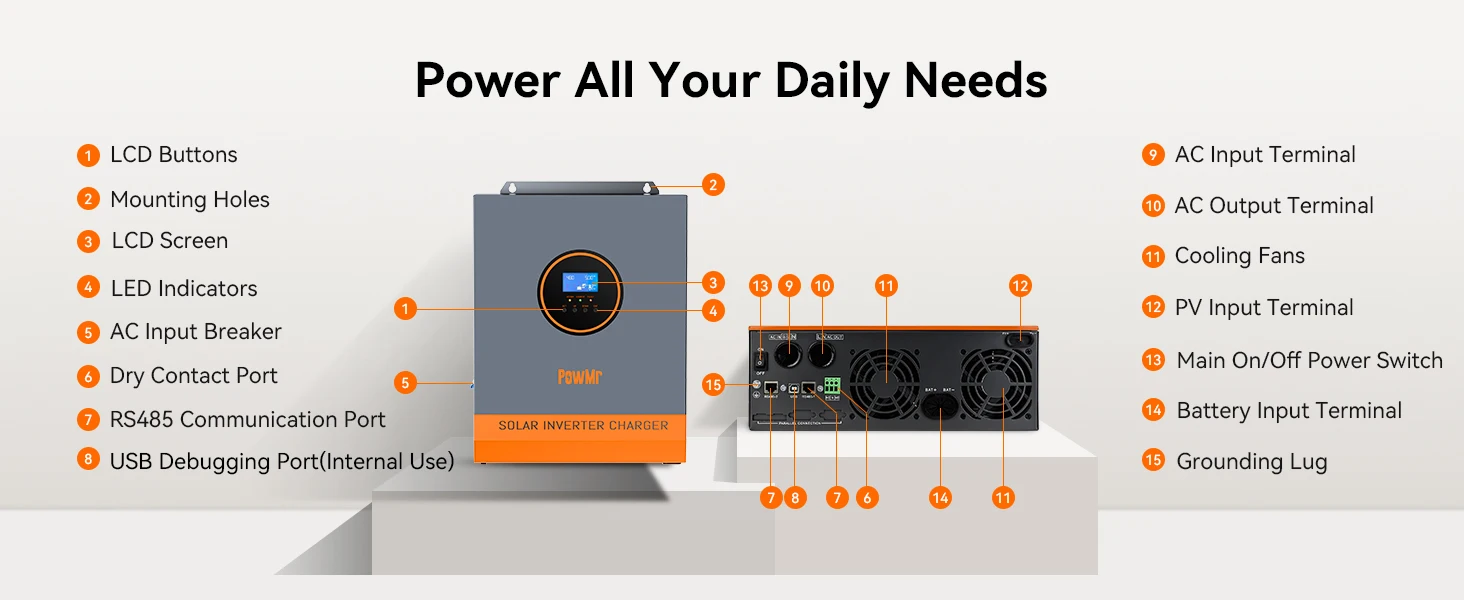

[Designed LCD screen]
LCD display design and 3 LED indicators dynamically display system data and operating status for easy viewing.

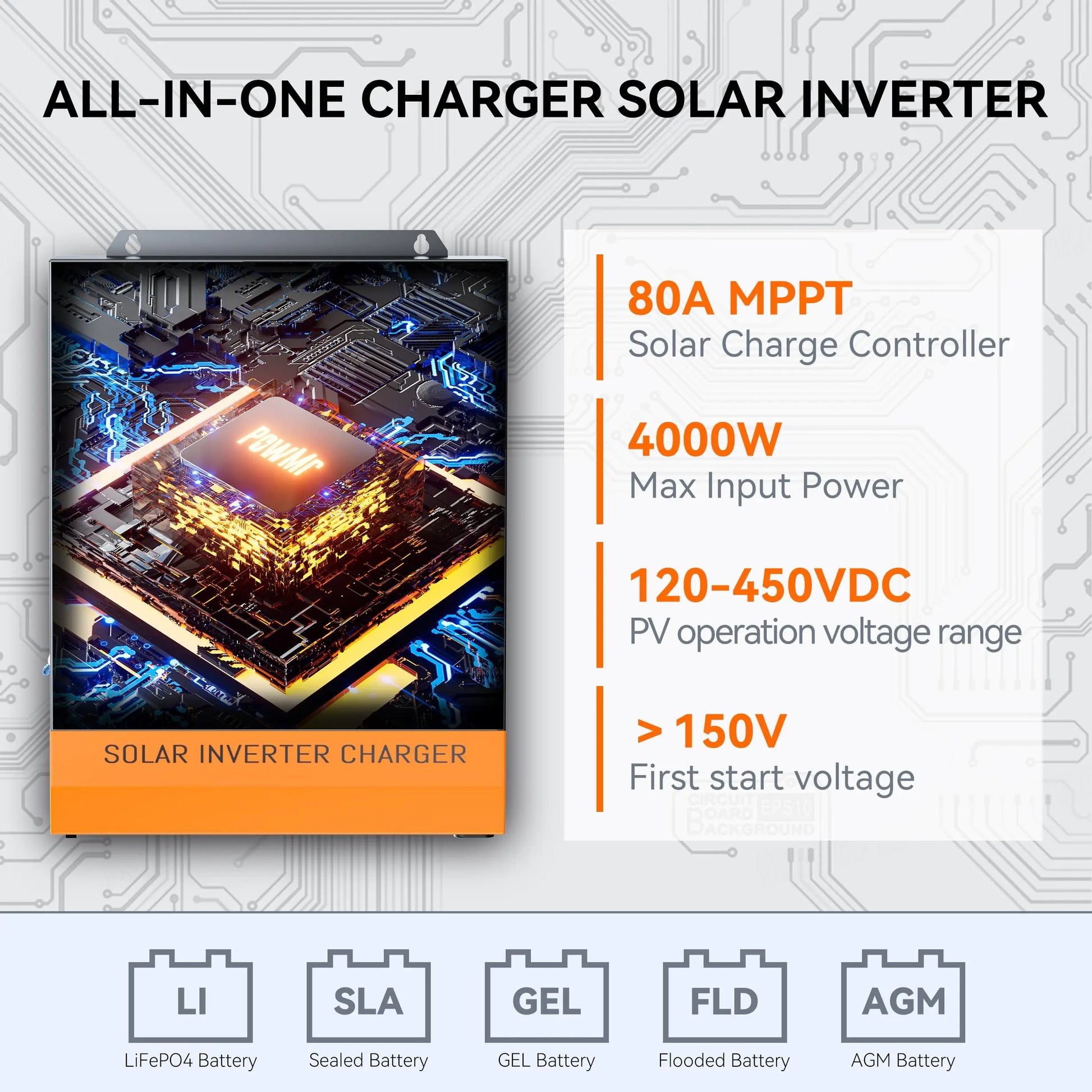

[Technical Specifications]
3KW Solar Inverter Rated output Voltage: 120Vac±5%; Peak power: 6000VA; MPPT Voltage Range: 120~400Vdc, Max PV Output Power: 4000W. Hybrid charging Max charger current (AC charger+PV charger): 80A.

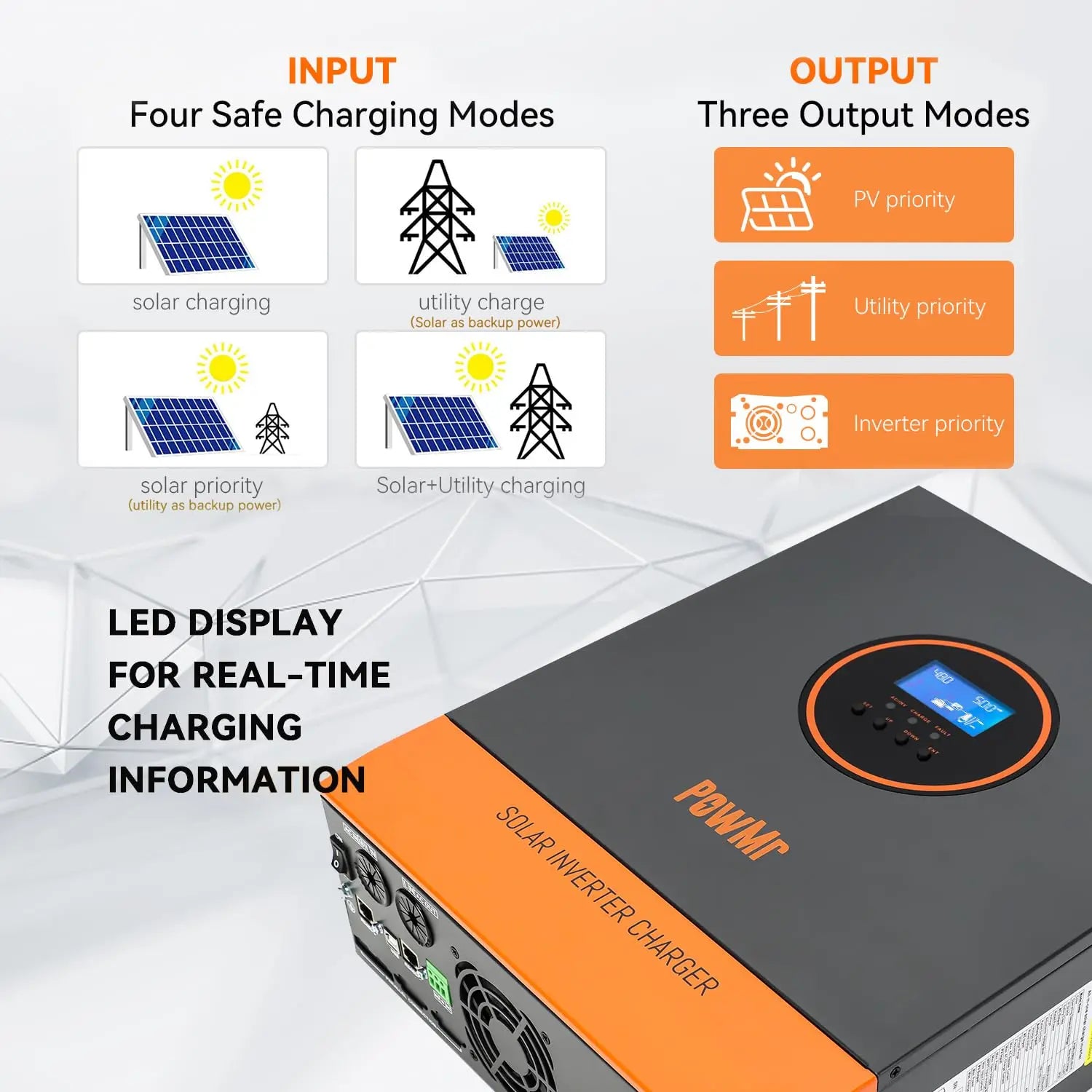

[Four Safe Charging Modes]
Four charging modes of 24V Inverter can be selected: solar/utility priority/solar priority/utility hybrid charging. Three output modes can be set. PV priority/Utility priority/Inverter priority, which can meet different application needs of users.
[Diverse Use Scenarios]
Off Grid Inverter can be used in connection with 24V lead-acid(Seal, AGM, Gel, Flooded) and lithium batteries. It can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner. Lithium battery can be activation by PV solar or utility.
