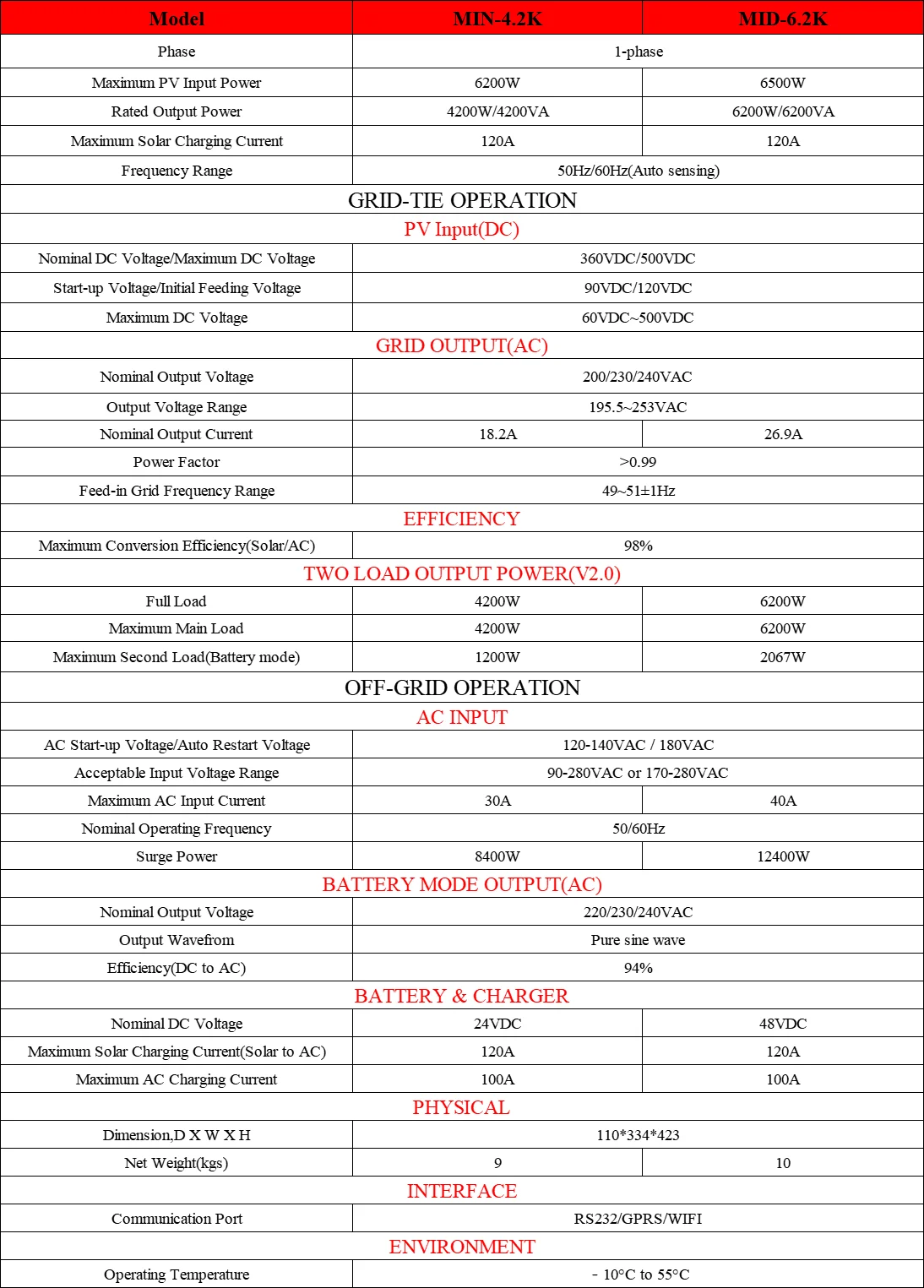

SPECIFICATIONS

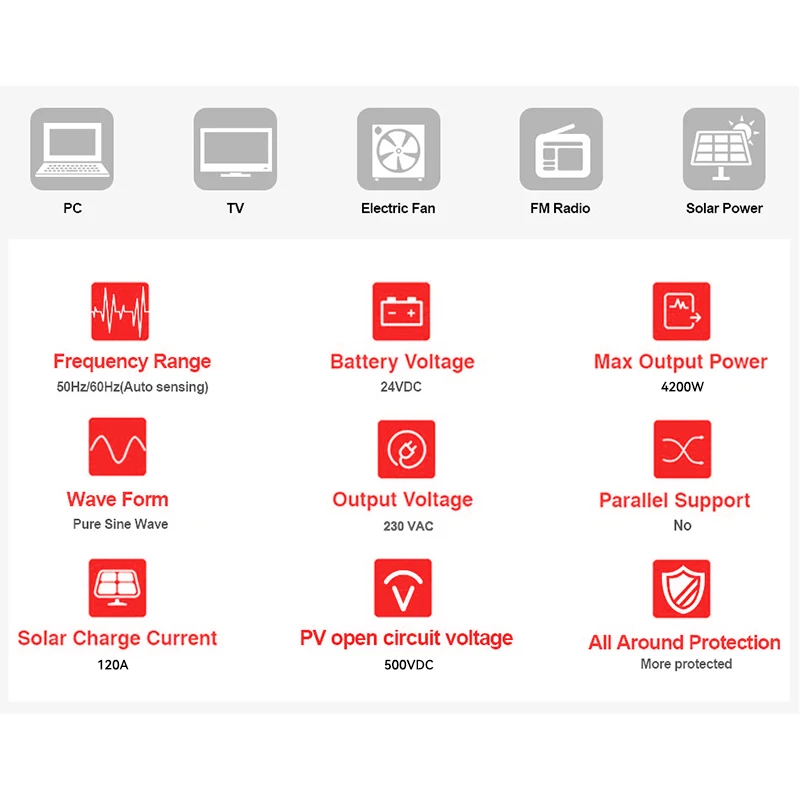

Battery Voltage: 24V

Brand Name: ECGSOLAX

Certification: CE

Hign-concerned Chemical: None

Is Smart Device: YES

MPPT Range @ Operating Voltage: 90 ~ 450 VDC

Maximum AC Charging Current: 100A

Maximum Solar Charging Current: 120A

Maxmium PV Array Open Circuit Voltage: 500VDC

Model Number: 4200W

Origin: Mainland China

Ouput Voltage: 220-240Vac

Output Frequency: 50/60Hz

Output Type: SINGLE

Surge Power: 7200VA

is_customized: Yes

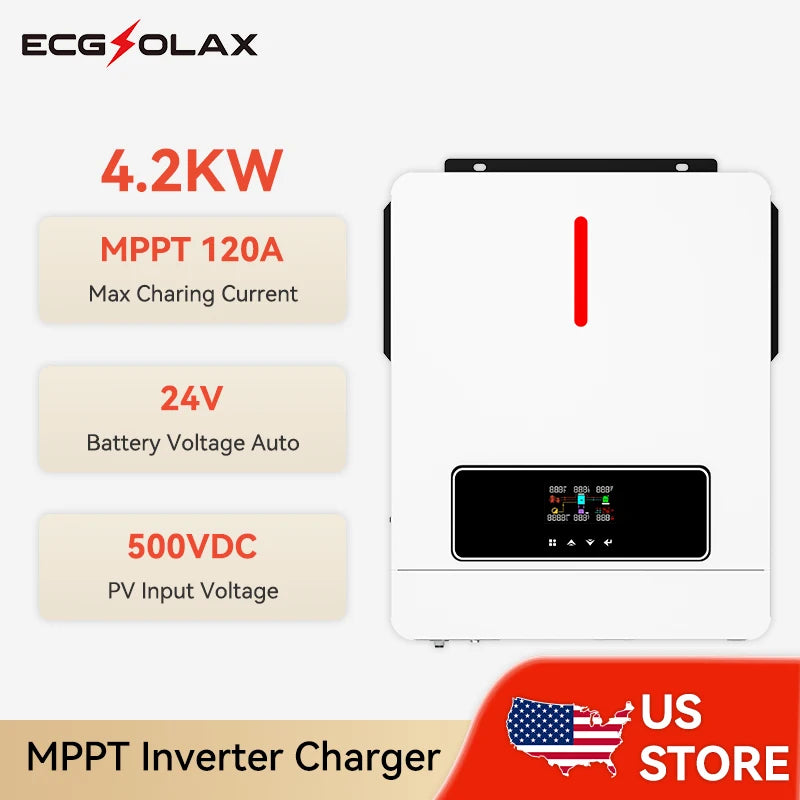

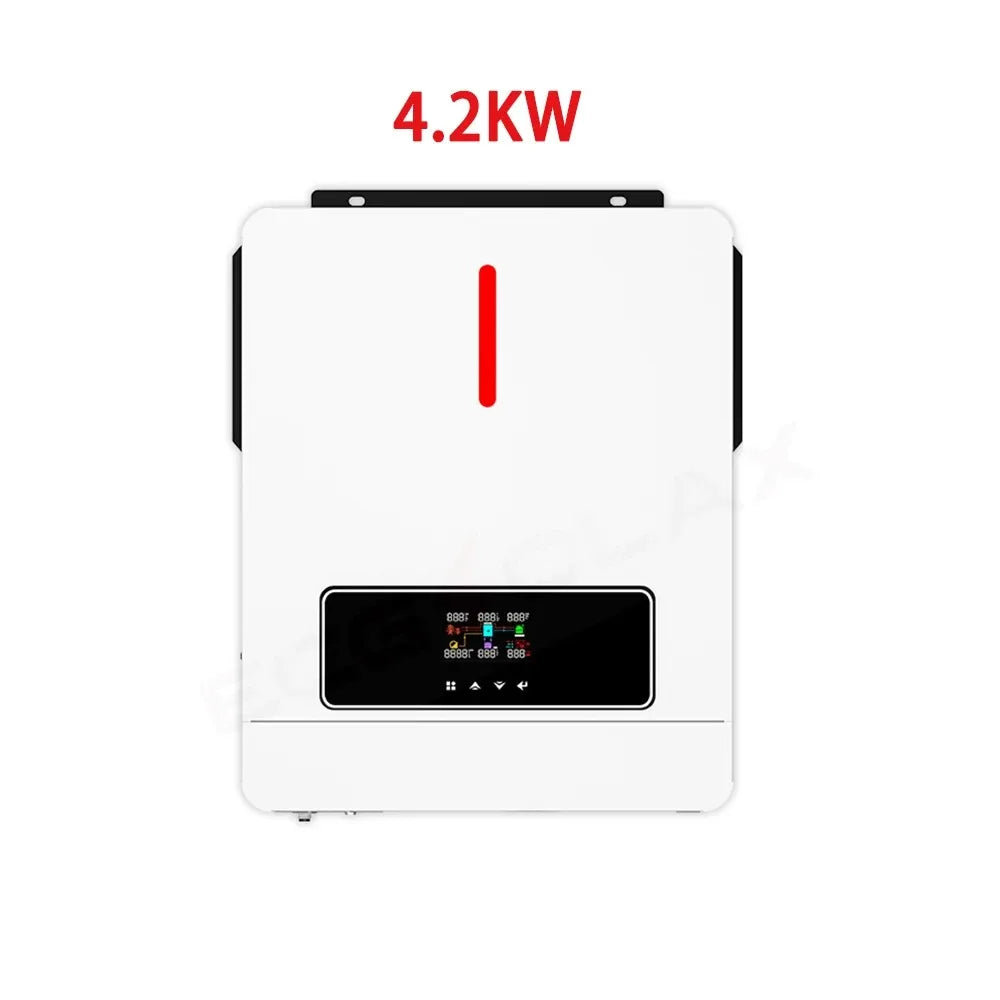

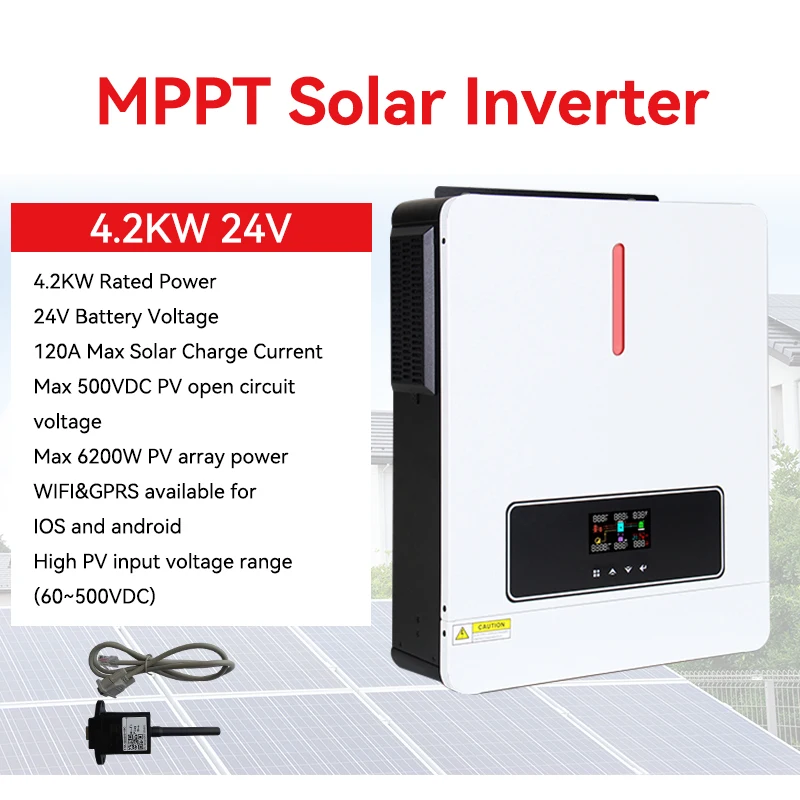

• ECGSOLAX 4.2KW 6.2KW Solar Hybrid Inverter 24V 48V 230Vac With 120A MPPT Charging Controller Hybrid Solar Inverter Max PV 500V

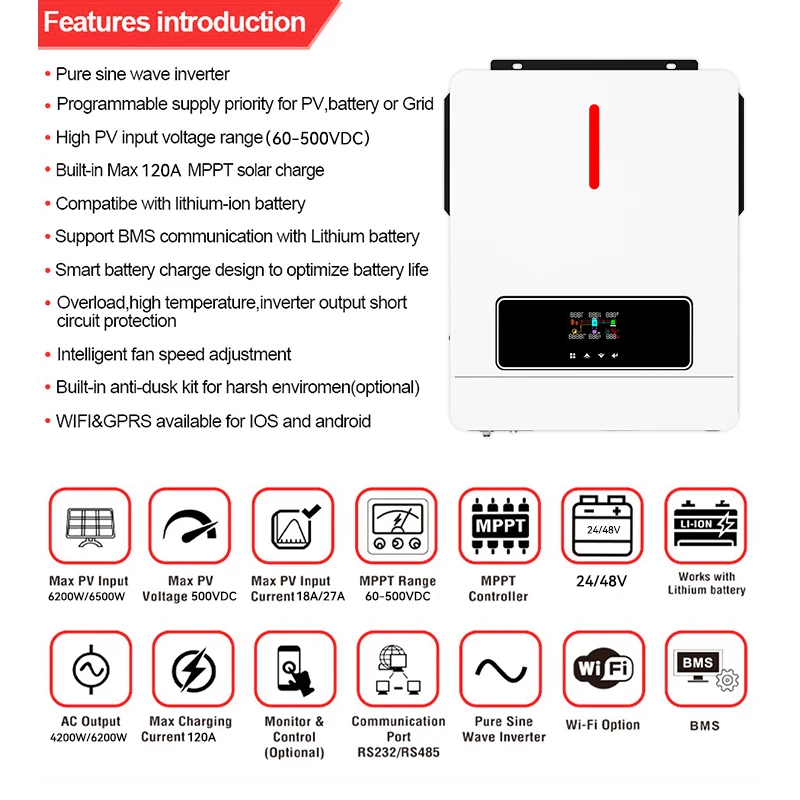

Features:

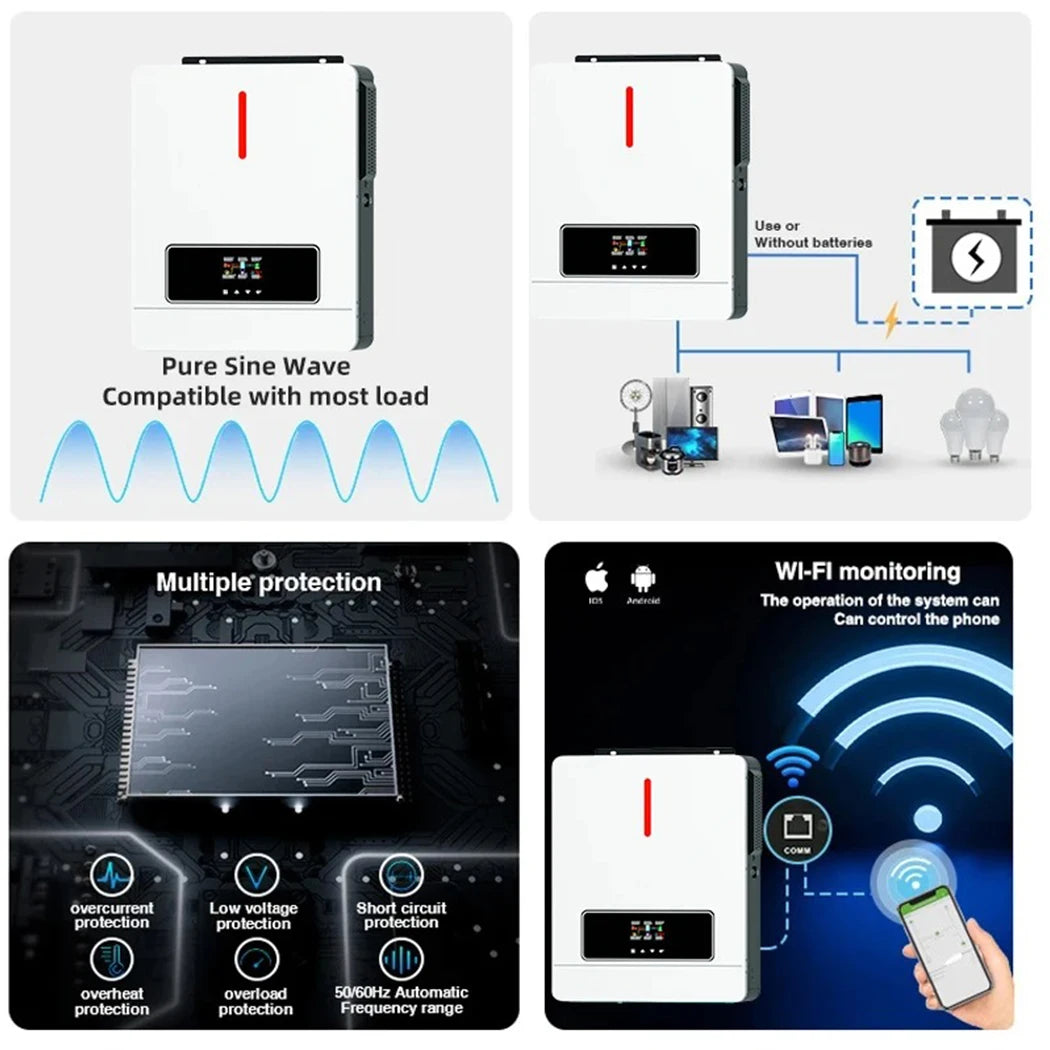

• Pure sine wave solar inverter(on/off Grid)

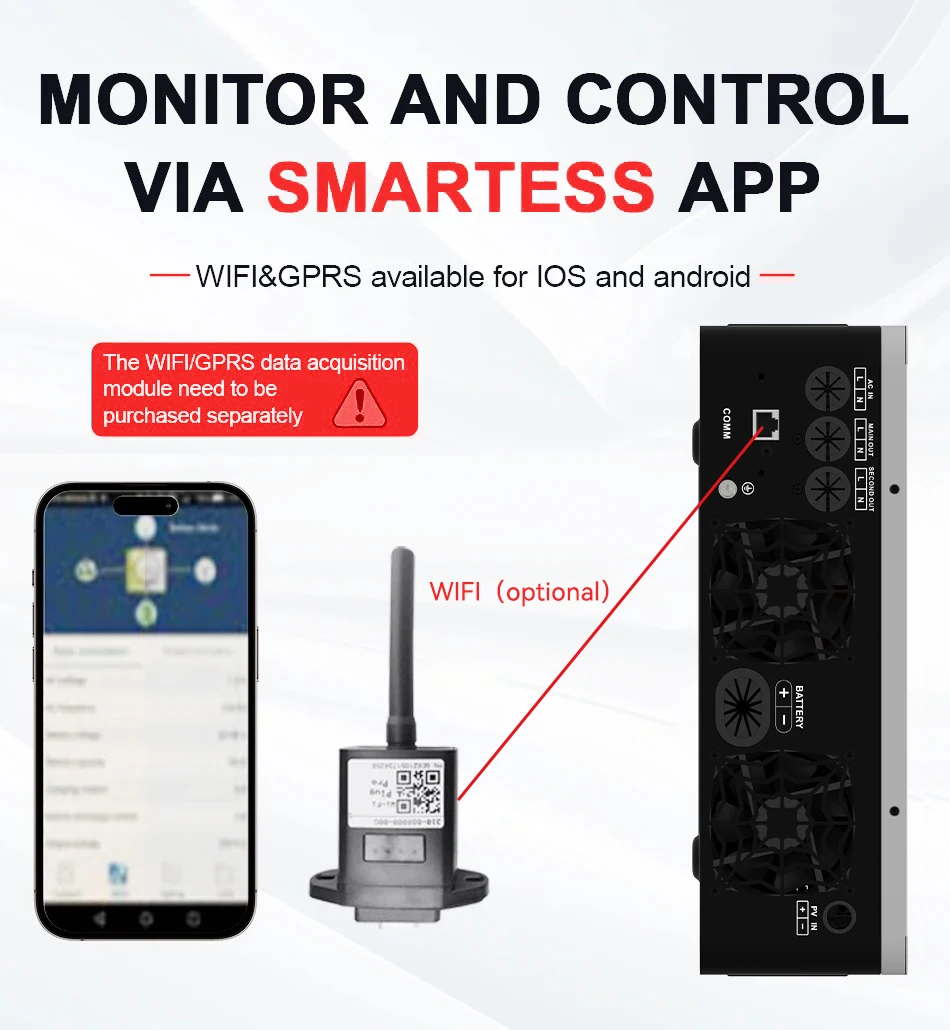

• WIFI&GPRS available for IOS and Android

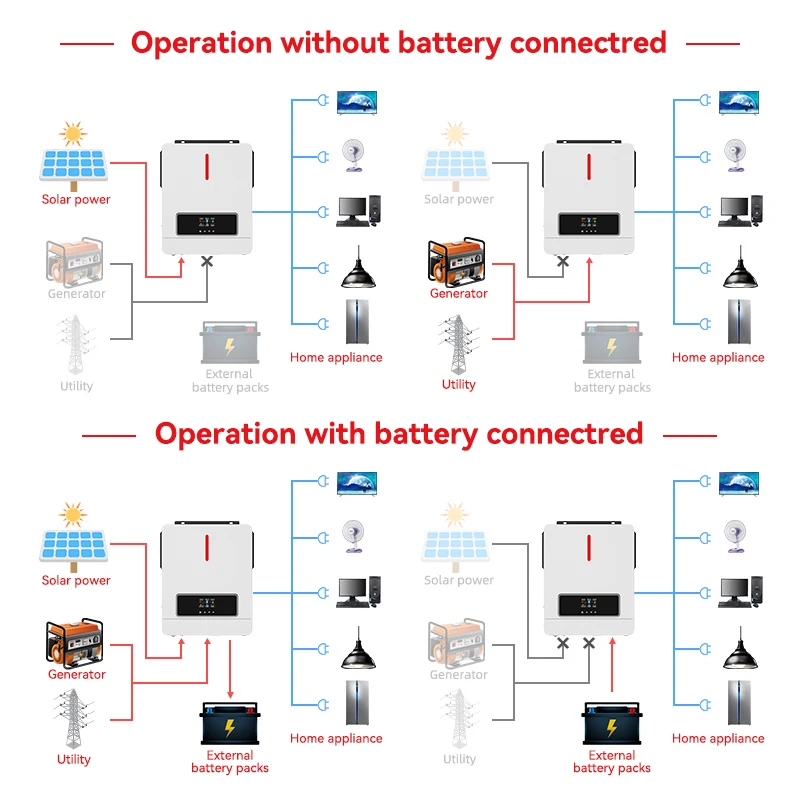

• Inverter running without battery

• One-key restoration to factory settings

• Built-in lithium battery automatic activation

• Built-in 120A(for 4.2KW/6.2KW)

• MPPT:max 6200W(for 4.2KW),max 6500W(for 6.2KW)

• High PV input voltage range(60~450VDC)

• Built-in anti-dusk kit for harsh enviroment

• Smart battery charge design to optimize battery life

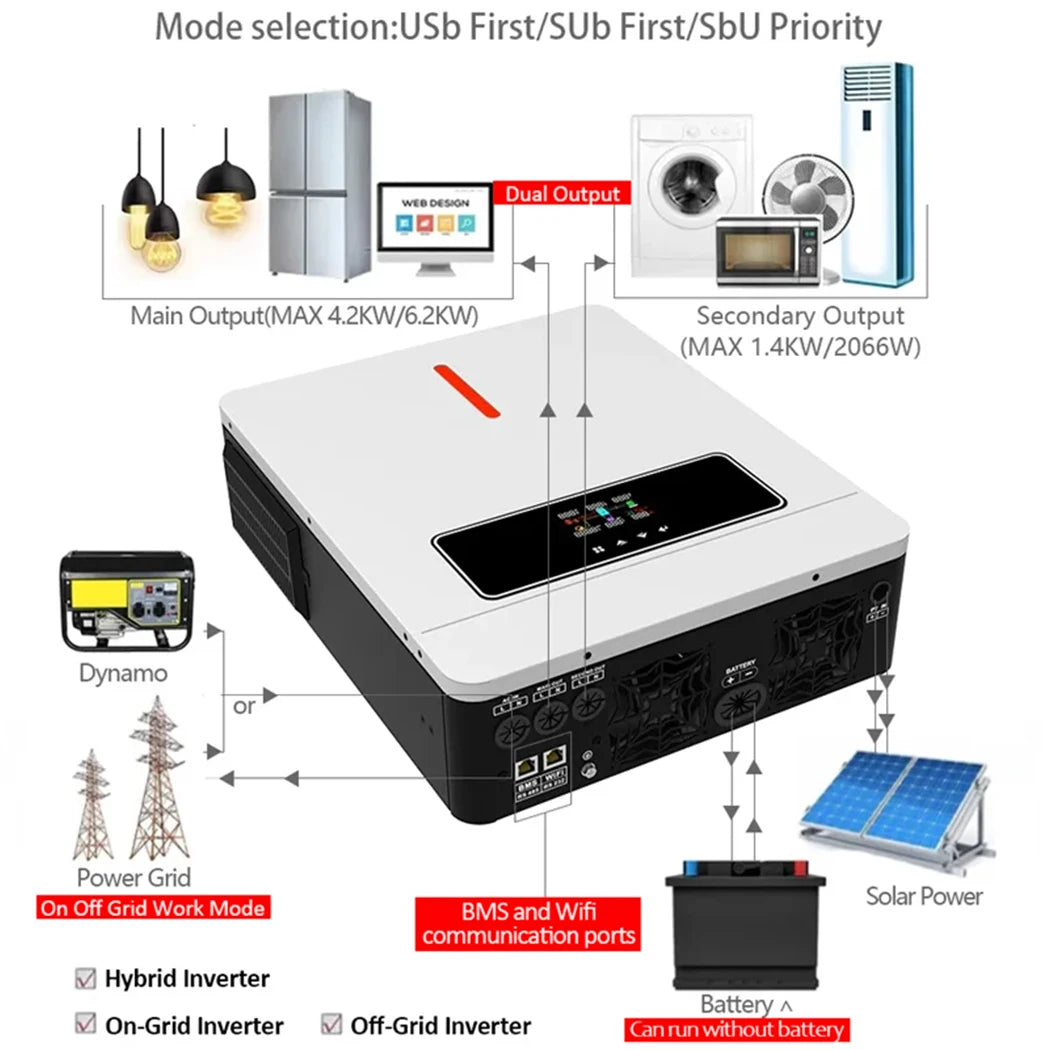

• Dual output

Introduction:

Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

it is an off-grid hybrid inverter that works without batteries. This inverter is a high frequency inverter,Lead-acid batteries, gel batteries, and lithium batteries can be used.
